10-50L Explosion proof Rotary Evaporator

FOB Reference Price:Get Latest Price
$1,800.00 - $2,500.00 / Sets | 1 Set/Sets (Min. Order)
Application:
Pharmaceutical Processing
Model Number:
EX-R2003KE
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Chemical
Condition:
New
Power Source:
Electric
Process:
Rotary
Place of Origin:
Shaanxi, China
Brand Name:
HEB
Voltage:
220V/50Hz
Power(W):
180KW
Dimension(L*W*H):
Rotary Evaporator
Weight:
25kg
Certification:
ISO9001 and CE
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Overseas third-party support available
Rotary Speed (rpm):
0-110r/min
Temperature:
Auto-controlling
Heating Bath:
PTFE and stainless steel combined pot
Vacuum Degree(Mpa):
-0.098
Motor power(W):
EX 180W
Dimension:
1520*620*2470mm
Power Supply:
220V/50Hz
Keyword:
Explosion-proof Rotary Evaporator
Supply Ability
Supply Ability:
700 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard export carton or wooden box
Port
Tianjin or Shanghai port

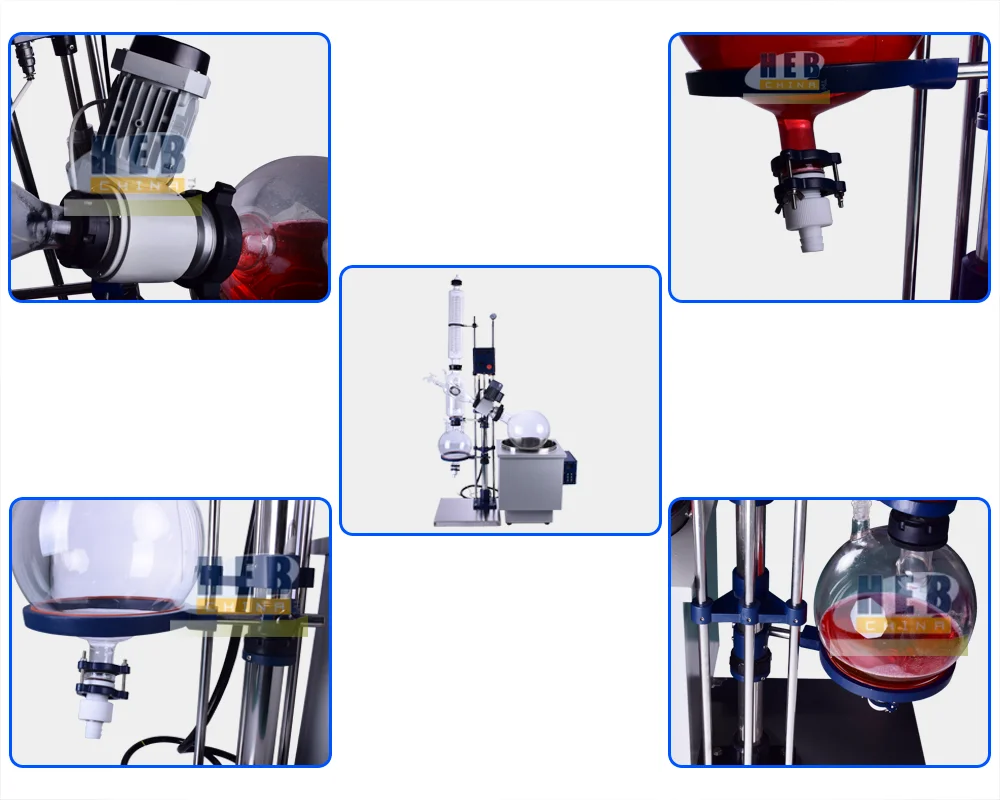

Product Description



10-50L Explosion-proof Rotary Evaporator


Adopts advanced frequency conversion and electronic speed control, ensures the stable operation of explosion-proof motor, improves evaporation and recovery.

Bath uses explosion-proof control box, hand wheel, electric lifting, vacuum feed, reduces the rotating bottle breakage. When low boiling point of evaporation, collect bottles can be immersed in an ice bath, reduce the second evaporation.

Collect bottles of ball mill mouth connection, easy dismounting, with good sealing.

With high temperature resistance, corrosion resistance of long-acting precision seal parts, which ensures gas tightness when dynamic seal in the high temperature, high pressure and strong corrosion situation.

AC interaction explosion-proof motor, step-less, no brush, no spark, can work effectively for a long time.

Chassis, bath pot, Lord select high quality stainless steel, crankshaft, attractive appearance and corrosion resistance.

Intelligent temperature control, water and oil bath for use, more extensive application. Temperature fluctuation is only ±0.2 ℃, evaporation is more stable, and not easy to produce flow.

The whole series of modular design, strong expansibility, easy installation and maintenance.

Technical parameters:

Model

EX-R1002B

EX-R2003KE

EX-R3002KE

EX-R5003KE

Evaporating bottle(L)

10L

20L

30L

50L

Collecting bottle(L)

5L

10L

20L

20L

Motor power(W)

EX120

EX120

EX180

EX180

Vacuum pump(Mpa)

0.098

0.098

0.098

0.098

Rotary speed(rpm)

0-110

0-110

0-110

0-110

Evaporating speed(H2O)(L/h)

4

6

8

11

Power supply(V)

220

220

220

220

Dimension(mm)

970*480*1950

1170*540*2200

1520*620*2470

1520*620*2470





Packaging & Shipping







Our Services

Warranty Service



From the date of acceptance, we can provide 12 months quality guarantee, all the maintenance costs and accessories parts costs are free within the date of quality guarantee (spare and accessories parts costs from instrument faults by human factors will be charged proper costs).



After the date of quality guarantee, we will in charge of maintain instrument, and charge proper costs according to actual maintenance costs.





Company Information

Company information





Our motto: First-Rate Service, First-Rate Quality.

Xi’an Heb Biotechnology Co., Ltd, is established in 2004, has passed more than 10 years, is a technological innovation-based enterprise provided with integration of research, develop, manufacture and marketing. Nowadays, our products has gotten extensive application in Asia, European and America, even spread all over domestic laboratories. The brand of Xi’an Heb has become one of the popular and reliable brands among our customers.





Main instruments in our company: double-layer glass reactor ( jacketed glass reactor), rotary evaporator, low-temperature cooling liquid circulating pump (DLSB refrigerated circulator or chiller), multi-purpose circulating water vacuum pump, high and low temperature circulating system, high temperature oil bath(heating circulation bath), diaphragm vacuum pump, rotary vane vacuum pump, water bath/oil bath series, incubator series, drying oven series, centrifuge series, ultrasonic cleaner series etc. These scientific experimental instruments and industrial assorted equipment amount to more than 10 series and 100 types. Our products passed ISO9001 International Quality System Certification,and some products passed CE certification.





Welcome new and old customers to our factory, and we guarantee that our products have high-quality and more favorable price.



HEB wants to joint hands with you to create more precise experimental instruments.



FAQ

1. Are you the factory?



Yes, we’re.

Established in 2004, we manufacture rotary evaporator, cylindrical jacketed reactor, cryostat etc.

In 2006 year, we associated with our soul partner QiXin instrument, developed commonly new production line, now, we manufacture CO2 Incubator, Cooling Incubator, Shaker Incubator, Blast Oven, Vacuum Oven, Climatic chamber and those products. Etc.



2. What is the delivery time?



Normally, we have stocks for our hot sale products, the delivery time is about 5-10 days. For the customized instrument, it’s about 10~20 days.



3. What’s the warranty period? How do you provide this?



Two years (24 month).

We have very strict inspection, the instruments which you received is high-quality and reliable.

If there’s any error, we’ll provide you the on line solution with in 12 hours. We’ll provide you the spare parts and the shipping cost totally free.

If the problem was caused by the instrument quality, and cannot be repaired, we’ll ship you the new one.





Contact us

Contact us:



Xi'an HEB Biotechnology Co., Ltd.



Add: No.3 Kechuang road, Yanta District, Xi'an city, Shaanxi, China

MT.: 86-18629532913

Tel: 86-029-88607291(Direct line)

Fax: 86-029-88265264

E-mail: heblab888 (AT)yahoo.com;  hep(AT)heblab.com

Skype: heblab888
