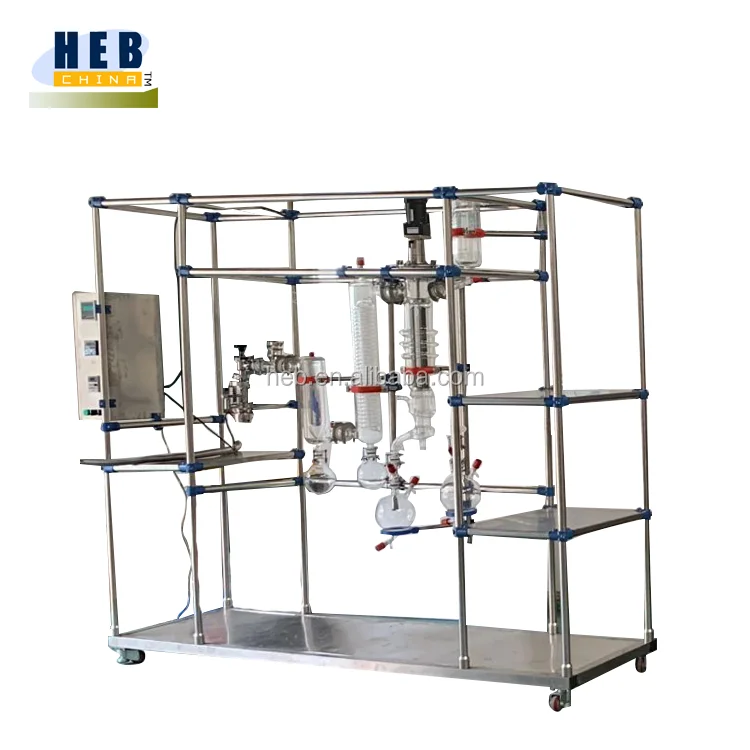

HEB series CBD and THC Oil Glass Molecular Distillation for

FOB Reference Price:Get Latest Price
$21,000.00 - $35,000.00 / Sets | 1 Set/Sets (Min. Order)
Application:
Distillation Pharmaceutical Processing
Model Number:
HEB-150
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
plant extract & distillation
Condition:
New
Power Source:
Electric
Process:
Wiped Film
Place of Origin:
China
Voltage:
220V
Weight:
580kg
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Online support
model:
HEB-150
Effective evaporation area:
0.3 M2
Condensation area:
0.2M2
Barrel diameter:
150mm
Constant pressure feeding funnel volume:
2L
Processing flow:
300ml/min
Motor power:
120W
Maximum speed:
1100rpm
key word:
Molecular Distillation
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard export wooden case
Port
Shanghai or Guangzhou
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 25 To be negotiated
Video Description
Product Description

Summary

HEB wiped film evaporator, it is a process of separation, purification and concentration of natural products, complex and thermally sensitive molecules for example vitamins and polyunsaturated fatty acids. This process is characterized by short term exposure of the distillate liquid to high temperatures, by high vacuum pressure (around 1024 mmHg) in the distillation column and a small distance between the evaporator and the condenser around 2 cm, where fluids are in the free molecular flow regime, i.e. the mean free path of molecules is comparable to the size of the equipment. This process has the advantages of avoiding the problem of toxicity that occurs in techniques that use solvents as the separating agent, and also of minimizing losses due to thermal decomposition.



Technical Parameters

Model
HEB-60
HEB-80
HEB-100
HEB-150
HEB-200
HEB-300
Effective evaporation area (m2)
0.05
0.12
0.2
0.3
0.4
0.6
Condensation area (m2)
0.03
0.1
0.15
0.2
0.25
0.3
Barrel diameter (mm)
60
80
100
150
200
300
Constant pressure feeding funnel volume(L)
0.25L
0.5L
1L
2L
3L
5L
Processing flow (ml/min)
50
100
180
300
500
1000
Motor power (W)
60
80
120
120
120
200
Maximum speed (rpm)
1100
1100
1100
1100
600
300

Main Features

1) Low operating pressures


2) Short residence time

3) High evaporation rates

4) Low fouling on evaporator wall

5) Grease-less magnetic sealed bearing, valves and joints

6) Perfect for heat sensitive materials
Detailed Images

Feeding system

1. Apply constant pressure dropping funnel


2. Multiple entry of material

3. High borosilicate glass 3.3

4. Feed insulation system available

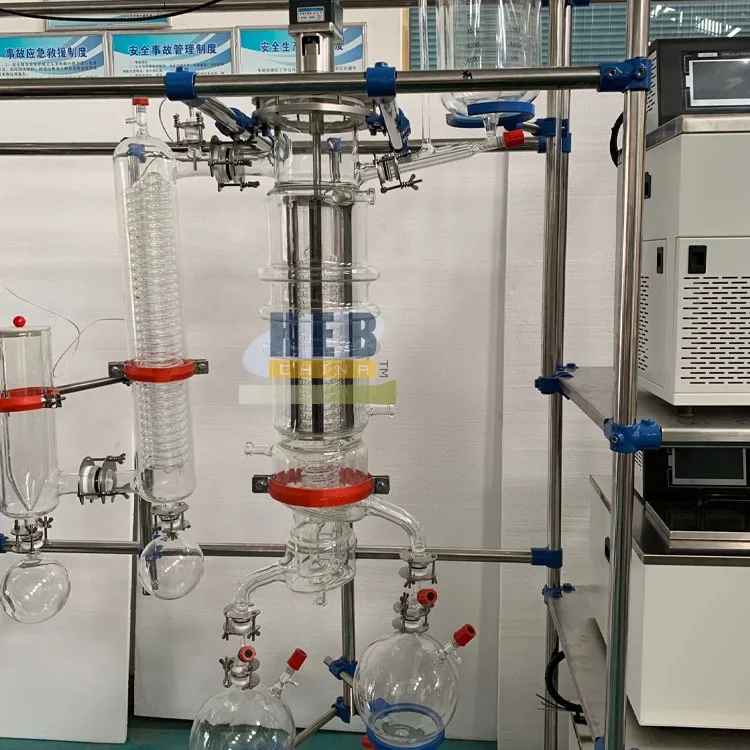

Jacketed evaporation barrel

1.Made of high borosilicate glass 3.3 easy for viewing


2.PTFE blades, which is high temp resistance and anti-corrosive

Cold trap

The main components are fabricated in Borosilicate glass

External condenser

1. Made of high borosilicate glass 3.3


2. Capable of effectively condensing the gas

3. Resistant corrosion

Diffusion Pump

With a  diffusion pump, the vacuum system will be better

Collection flask

The receiving system can be customized for non-stop operation.

Multi-function digital controller

1. Digital display of temp.


2. Variable frequency speed controller

3. Digital display of vacuum degree
Related Products

1. Low & constant Temp Water Bath

Model : HC-1006

temp range: -10~100℃
temp stability: ±0.05~±0.2℃
resolution: 0.1mm³
tank size: 260*200*140mm³
lifting: 5m
pump flow rate:0~20L/min
tank mouth:180*140mm²
water draining: yes

2. Digital Circulator Heater
Model : GY-30A
temp range: RT+5~200℃
temp stability: ±0.05~±0.2℃
resolution: 0.1mm³
tank size: 400*330*230mm³
tank depth: 230mm
pump flow rate:13L/min
tank mouth:310*280mm²
water draining: yes



3. Constant Tempe Water Bath
Model : GY-15A
temp range: RT+5~200℃
temp stability: ±0.05~±0.2℃
resolution: 0.1mm³
tank size: 300*240*200mm³
tank depth: 200mm
pump flow rate:13L/min
tank mouth:235*160mm²
water draining: no

4. Vacuum Pump
Model: VRD-24
Displacement speed m3/h (L/s):
50Hz, 24 (6.6)
60Hz 28.8 (7.9)
Ultimate partial pressure gas ballast closed : 4x10-2
Pa
Ultimate total pressure gas ballast closed : 4x10-1
Pa
Ultimate total pressure gas ballast open: 8x10-1
Pa
power supply: Single/Three phase
Power rating: 1.1/0.75KW
Intake and exhaust DN (mm): KF25/40
Oil capacity: 1.3~2.0L
Motor speed:
50Hz 1440rpm
60Hz 1720rpm
Ambient temperature: 5 ~ 40
°C
Noise level: ≤58
dB
Net weight: 35kg
